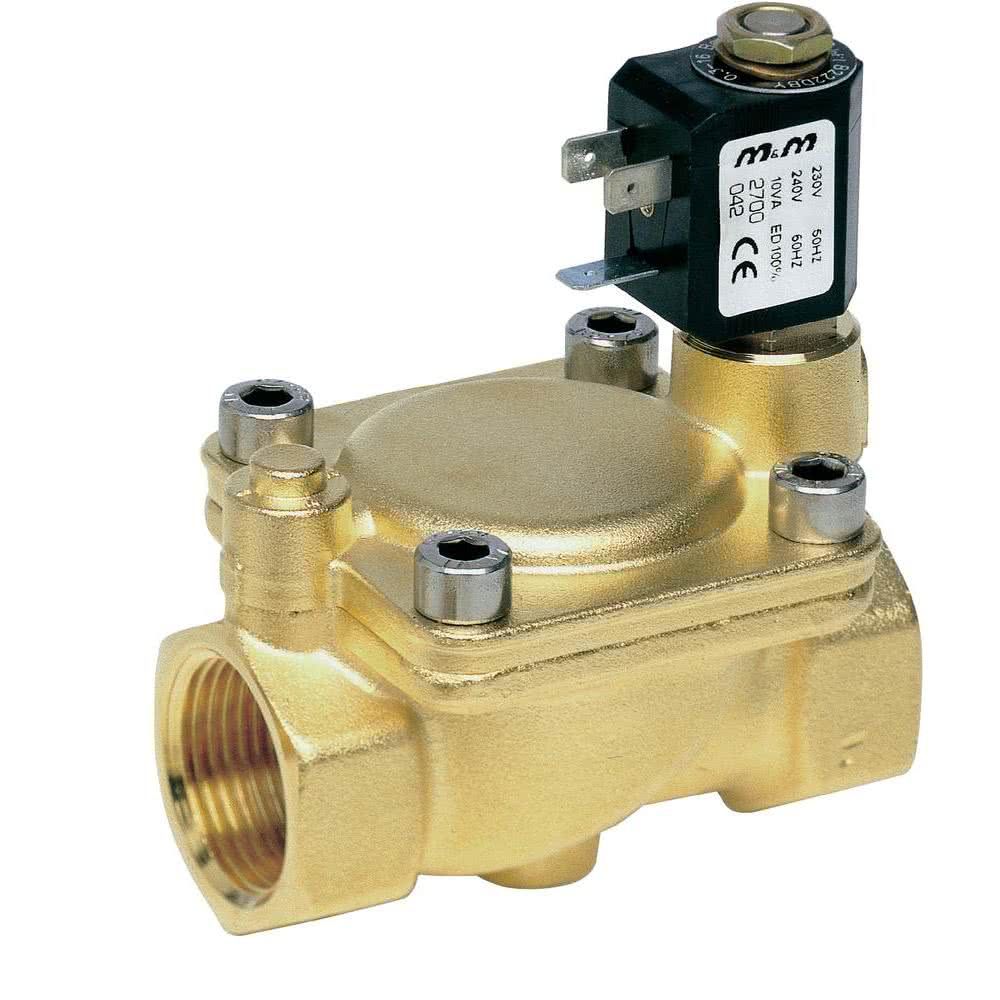

B206DBY 2-way solenoid valve, G 3/4 ", brass, normally closed, servo-controlled

  • 12V 50/60Hz
  • 12V DC
  • 24V 50/60Hz
  • 24V DC
  • 110V 50Hz - 120V 60Hz
  • 230V 50Hz - 240V 60Hz
  • without coil



Servo-controlled solenoid valves 2/2 ways and - NC or NO

The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.

about 2-3 weeks
Article no
B206DBY
€68.32
More Information
Article no B206DBY
Media Luft, Öl, Wasser
Hersteller M&M international Srl
Pressure min (bar) 0,3
Material Brass
Valve type 2-way normally closed
Ambient temperature -10°C - +50°C
Control type (solenoid valves) servo controlled
Nominal size 25.0
Kvs (l/m) 140
Connection size G 3/4"
Media temperature -10°C - +90°C
Material (seal) NBR
Material (anchor) Stainless steel
Max. pressure AC voltage 16
Max. pressure DC voltage 16

Servo-controlled solenoid valves 2/2 ways and - NC or NO

The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.

B206DBY
B206DBYV
  • SKU: B206DBYV
  • Material (seal): NBR
  • Special version: Closing damping
B206DEY
B206DVY
