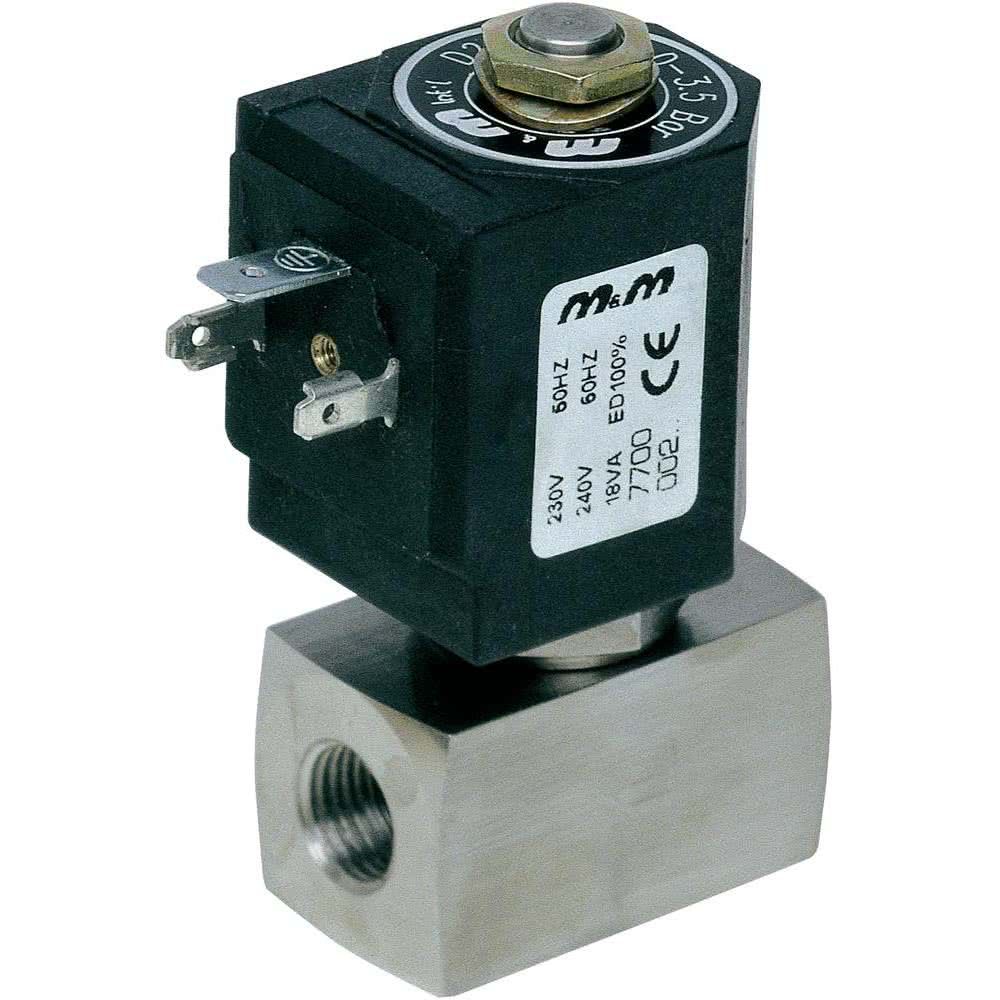

2-way solenoid valve, G 1/4 ", stainless steel, normally closed, direct operated
The image may differ from original
2-way solenoid valve, G 1/4 ", stainless steel, normally closed, direct operated
2-way solenoid valve, G 1/4 ", stainless steel, normally closed, direct operated

D299DVG 2-way solenoid valve, G 1/4 ", stainless steel, normally closed, direct operated

  • 12V 50/60Hz
  • 12V DC
  • 24V 50/60Hz
  • 24V DC
  • 110V 50Hz - 120V 60Hz
  • 230V 50Hz - 240V 60Hz
  • without coil

Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO


The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.

on stock
Only %1 left
Article no
D299DVG
$ 68.53

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no D299DVG
Media aggressive Medien, Luft, Öl, Wasser
Hersteller M&M international Srl
Kvs (l/m) 3.4
Material (anchor) Stainless steel
Media temperature -10°C - +130°C
Orifice size (mm) 2.5
Control type (solenoid valves) directly controlled
Ambient temperature -10°C - +50°C
Valve type 2-way normally closed
Material Stainless steel
Connection size G 1/4"
Material (seal) FKM A80 suitable for food
Max. pressure voltage (AC) 18
Max. pressure voltage (DC) 16
