Datasheets:

Introduction to the TAC Product Line.pdf

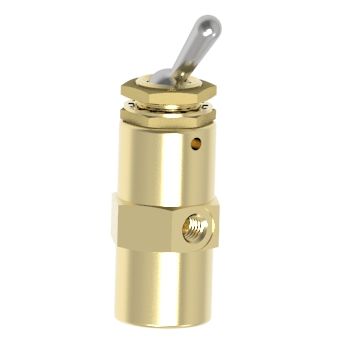

TAC Miniature Toggle Valve

Four way miniature toggle valve, detented, with 10-32 UNF ports. TAC toggle valves feature an attractive lever above a 15/32-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged.

about 3-4 weeks

Article no

$ 46.16

Qty:

You need larger quantities? We would like to make you an individual offer. Request an offer now

Ask a question

More Information

Details

More Information
Article no	4V
Hersteller	Humphrey

Customers questions & answers

Ask a question

Number of Ports	5 ports
Number of Positions	2 positions
Valve Function	4-way, Detent
Piping Type	Inline, Direct Piping
Options Included	Panel Mounting Hardware
Approx Size (in) HxWxD	2.12 x 0.69 HEX
Media	Air
Type of Operation	Toggle
Flow Capacity (Cv)	0.18
Port Size	10-32 UNF
Lubrication	Recommended
Media Filtration	40 micron recommended
Pressure Range (psi)	0-125
Ambient Temperature Range (⁰F)	-20~180
Wetted Materials	Brass, SST, Buna N
Weight (oz)	2.5

TAC Miniature Toggle Valve
