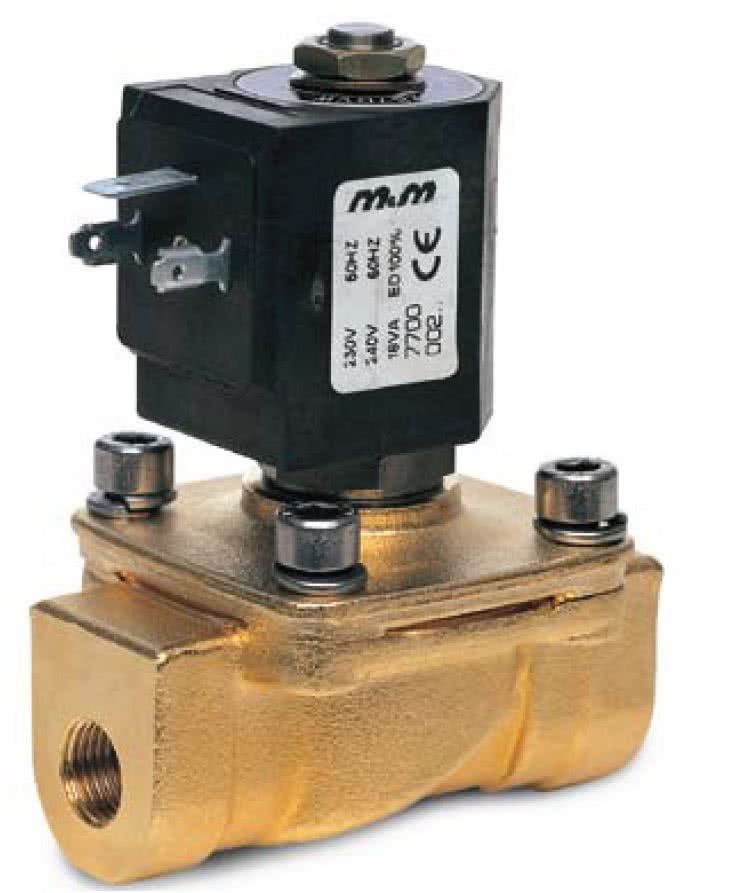

2-way solenoid valve, G 3/8 ", brass, normally closed - from 0 bar, positively controlled
Positive-controlled solenoid valves 2/2 ways - NC
These solenoid valves are a combination of direct and servo controlled valves. The armature is mechanically connected to the diaphragm on which there is a discharge nozzle. At low pressure, the solenoid valve works like a direct acting valve. Full opening and full flow are not possible at low pressures. At higher pressures, the valve operates like a servo-controlled valve and full opening allows full flow. Average switching times 50 ÷ 500 ms.
on stock
Article no
CD188DBW
Special Price
$ 82.69
Regular Price
$ 110.26
Discount 25%
| Article no | CD188DBW |
|---|---|
| Hersteller | M&M international Srl |
| Media | Luft, Öl, Wasser |
| Kvs (l/m) | 60 |
| Material (anchor) | Stainless steel |
| Media temperature | -10°C - +90°C |
| Orifice size (mm) | 15.0 |
| Control type (solenoid valves) | positively controlled |
| Ambient temperature | -10°C - +50°C |
| Valve type | 2-way normally closed |
| Material | Brass |
| Connection size | G 3/8" |
| Material (seal) | NBR |
| Max. pressure voltage (DC) | 6 |
