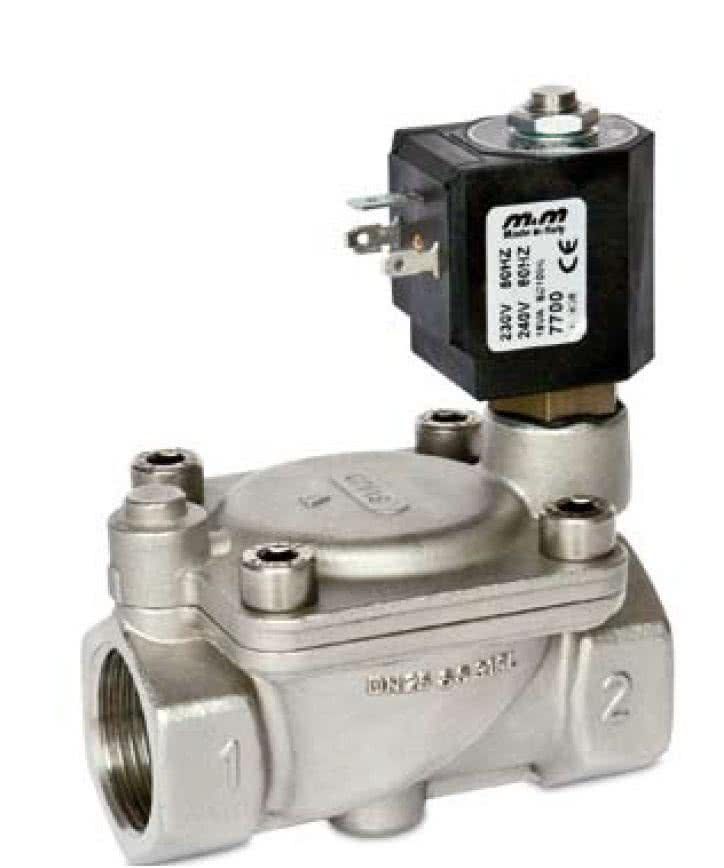

2-way solenoid valve, G 3/4 ", stainless steel, normally closed, servo-controlled
The image may differ from original
2-way solenoid valve, G 3/4 ", stainless steel, normally closed, servo-controlled
2-way solenoid valve, G 3/4 ", stainless steel, normally closed, servo-controlled

D206DVYI 2-way solenoid valve, G 3/4 ", stainless steel, normally closed, servo-controlled

  • 12V 50/60Hz
  • 12V DC
  • 24V 50/60Hz
  • 24V DC
  • 110V 50Hz - 120V 60Hz
  • 230V 50Hz - 240V 60Hz
  • without coil

Servo-controlled solenoid valves 2/2 ways and - NC or NO

The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.

about 2-3 weeks
Article no
D206DVYI
$ 395.47
  • Buy 3 for $ 375.70 each and save 5%
  • Buy 5 for $ 355.92 each and save 10%
  • Buy 10 for $ 336.15 each and save 15%

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no D206DVYI
Pressure min (bar) 0,3
Hersteller M&M international Srl
Media aggressive Medien, Luft, Öl, Wasser
Kvs (l/m) 140
Material (anchor) Stainless steel
Material (seal) FKM
Media temperature -10°C - +130°C
Orifice size (mm) 25.0
Control type (solenoid valves) servo controlled
Ambient temperature -10°C - +50°C
Valve type 2-way normally closed
Connection size G 3/4"
Material AISI 316L
Max. pressure voltage (AC) 16
Max. pressure voltage (DC) 16
