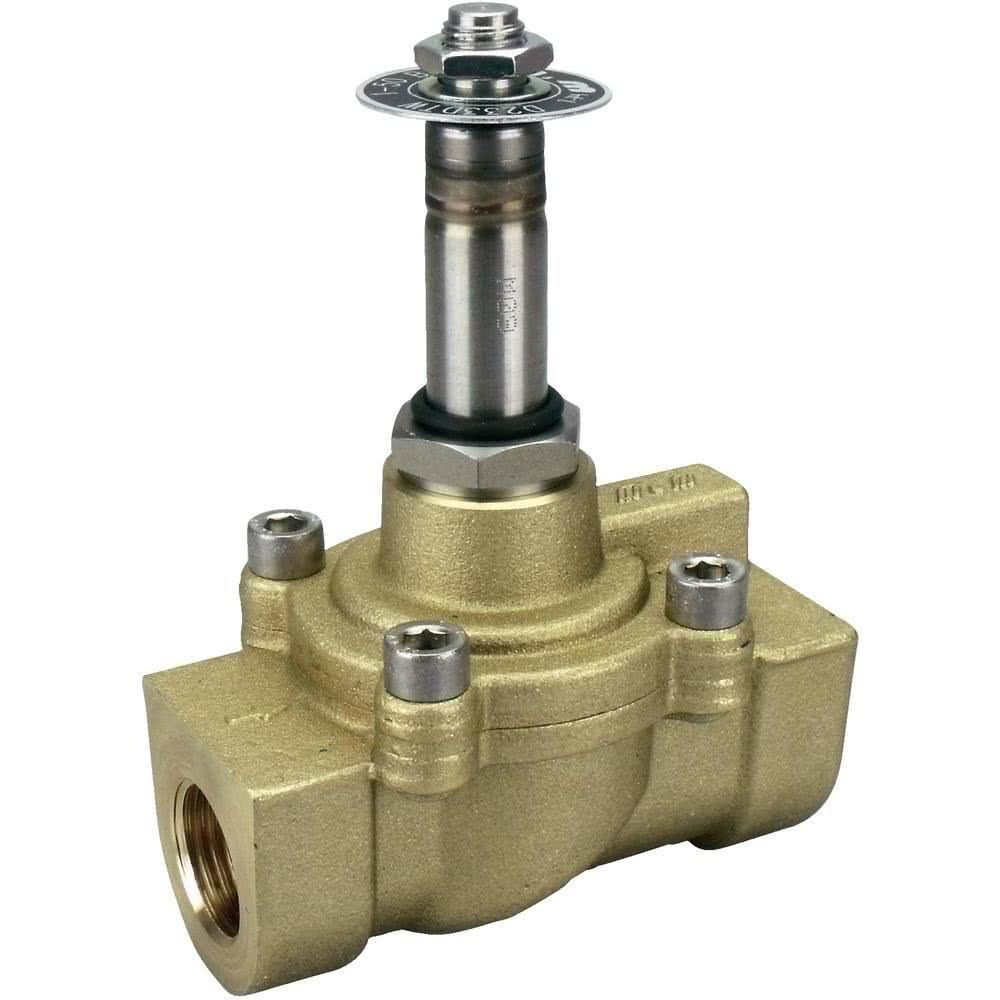

2-way solenoid valve, high pressure, G 3/4 ", brass, normally closed, servo-controlled
Servo-controlled solenoid valves 2/2 ways and - NC or NO
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
on stock
Article no
D234DTW
$ 201.10
- Buy 3 for $ 191.04 each and save 5%
- Buy 5 for $ 180.99 each and save 10%
- Buy 10 for $ 170.93 each and save 15%
| Article no | D234DTW |
|---|---|
| Media | Luft, Öl, Wasser |
| Hersteller | M&M international Srl |
| Pressure min (bar) | 1 |
| Kvs (l/m) | 64 |
| Material (anchor) | Stainless steel |
| Media temperature | -10°C - +130°C |
| Orifice size (mm) | 16.5 |
| Control type (solenoid valves) | servo controlled |
| Ambient temperature | -10°C - +50°C |
| Valve type | 2-way normally closed |
| Material | Brass |
| Material (seal) | PTFE |
| Connection size | G 3/4" |
| Max. pressure voltage (AC) | 50 |
| Max. pressure voltage (DC) | 50 |
