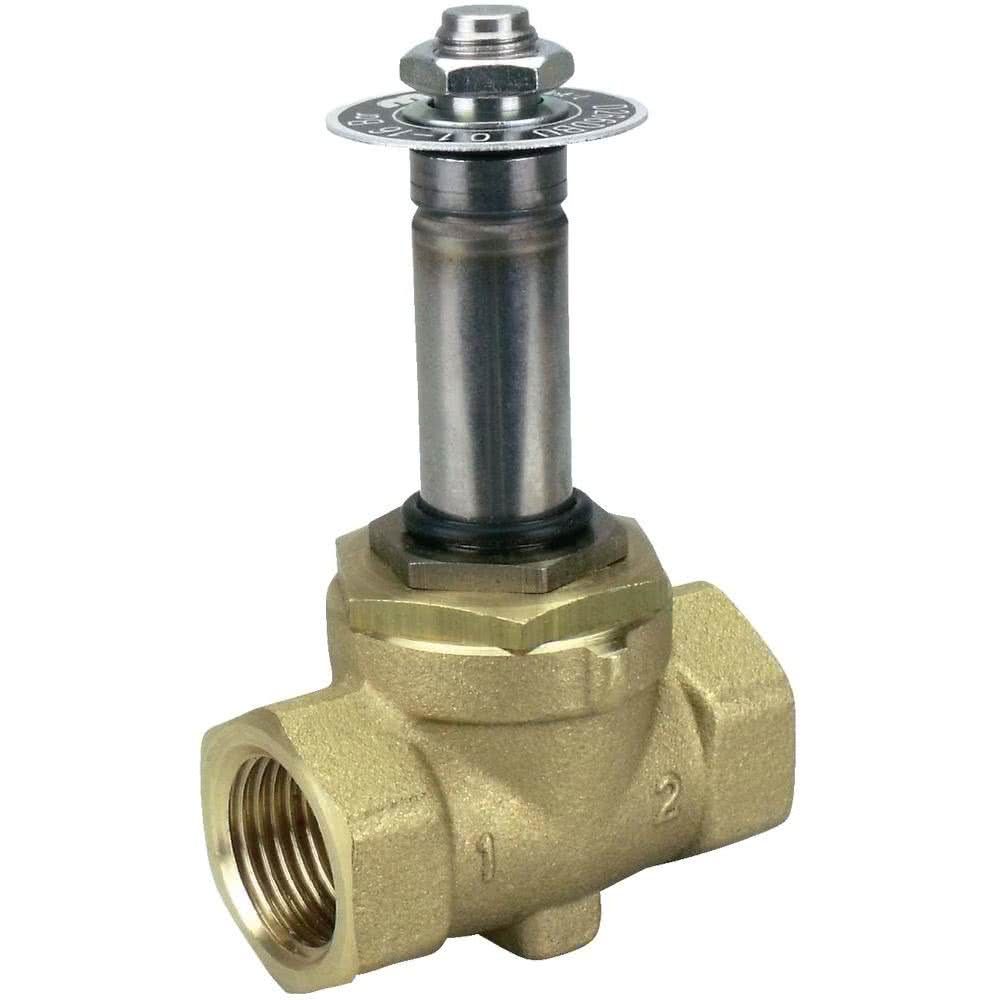

2-way solenoid valve, positively controlled, G 3/8 ", brass, normally closed
The image may differ from original
2-way solenoid valve, positively controlled, G 3/8 ", brass, normally closed
2-way solenoid valve, positively controlled, G 3/8 ", brass, normally closed

D885DVU 2-way solenoid valve, positively controlled, G 3/8 ", brass, normally closed

  • 12V 50/60Hz
  • 12V DC
  • 24V 50/60Hz
  • 24V DC
  • 110V 50Hz - 120V 60Hz
  • 230V 50Hz - 240V 60Hz
  • without coil

Positive-controlled solenoid valves 2/2 ways - NC


These solenoid valves are a combination of direct and servo controlled valves. The armature is mechanically connected to the diaphragm on which there is a discharge nozzle. At low pressure, the solenoid valve works like a direct acting valve. Full opening and full flow are not possible at low pressures. At higher pressures, the valve operates like a servo-controlled valve and full opening allows full flow. Average switching times 50 ÷ 500 ms.

about 2-3 weeks
Article no
D885DVU
$ 60.17
  • Buy 3 for $ 57.16 each and save 5%
  • Buy 5 for $ 54.15 each and save 10%
  • Buy 10 for $ 51.14 each and save 15%

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no D885DVU
Hersteller M&M international Srl
Media Luft, Öl, Wasser
Kvs (l/m) 24
Material (anchor) Stainless steel
Material (seal) FKM
Media temperature -10°C - +130°C
Orifice size (mm) 10.5
Control type (solenoid valves) positively controlled
Ambient temperature -10°C - +50°C
Valve type 2-way normally closed
Connection size G 3/8"
Material Brass
Max. pressure voltage (AC) 16
Max. pressure voltage (DC) 6
