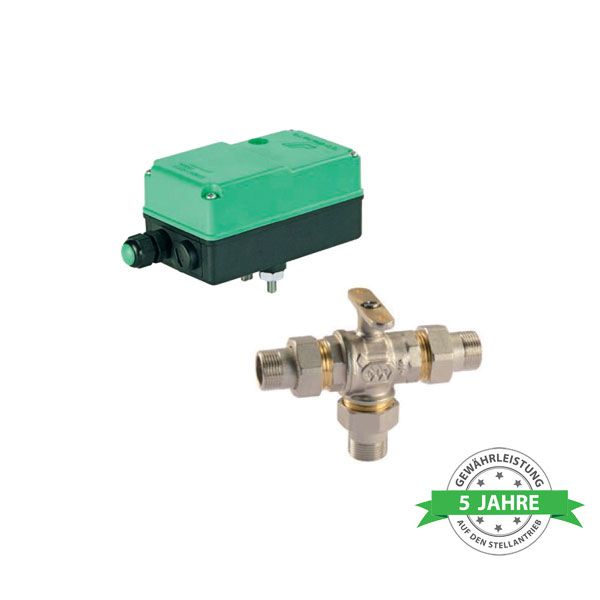

Comparato - Ball valve electric - Diamant 2000, 3-way 3/4 "M / M / M, DN20, PN16, 230V
230V 50 / 60Hz All in One Actuator for 2-point control (2P) - On / Off & 3-point control (3P) control
3-way G 3/4 "male / male / male
5-year warranty on the actuator
3-way G 3/4 "male / male / male
5-year warranty on the actuator
on stock
Only %1 left
Article no
DC3B3A--DY222
| Article no | DC3B3A--DY222 |
|---|---|
| Hersteller | Comparato Nello Srl |
| operating pressure | 0 - 16 bar |
| Operating time / Torque (Nm) | 35sec/11Nm |
| Cable length | 80cm |
| Ball valve (connection) | Threaded Connector |
| Ball valve (type) | 3-way ball valve male/male/male |
| Material (seal) | PTFE |
| Motor (type) | Bi-directional, all in one |
| Orifice size (mm) | 20.0 |
| rotation | 90 ° |
| Voltage | 230V 50Hz - 240V 60Hz |
| Connector (protection class) | IP 65 |
| Power consumption | 4.8VA |
| Ambient temperature | -10°C - +50°C |
| Connection size | G 3/4" |
| Material | Nickel-plated brass |
