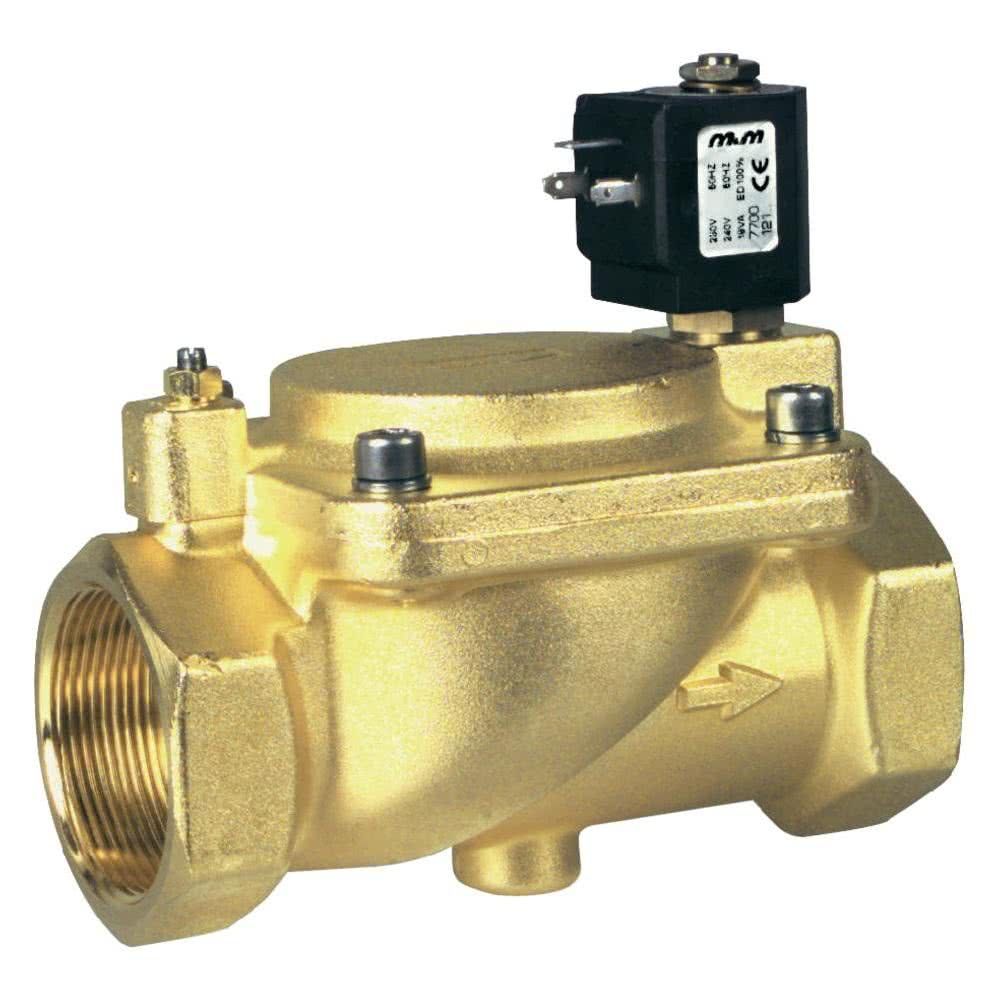

Servo-controlled solenoid valves 2/2 ways and - NC or NO
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
Article no | RD223DBK |
---|---|
Hersteller | M&M international Srl |
Media | Luft, Öl, Wasser |
Pressure min (bar) | 0,5 |
Kvs (l/m) | 370 |
Material (anchor) | Stainless steel |
Material (seal) | NBR |
Media temperature | -10°C - +90°C |
Orifice size (mm) | 40.0 |
Control type (solenoid valves) | servo controlled |
Ambient temperature | -10°C - +50°C |
Valve type | 2-way normally open |
Connection size | G 1 1/4" |
Material | Brass |
Max. pressure voltage (AC) | 16 |
Max. pressure voltage (DC) | 16 |
