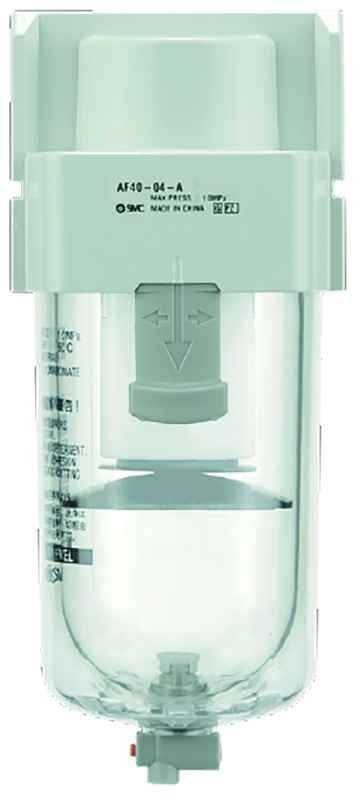

                SMC Pneumatic - Filter [AF]

        Medium compressed air
Ambient and medium temperature -5 to 60 ° C (not frozen)
Test pressure 1.5 MPa







            More Information


                    | Article no | AF20-F02-A |

                    | Hersteller | SMC |

                    | Flow | 1400 |

                    | Connecting thread | G 1/4 |

                    | Condensate drain | manually |







        Medium compressed air
Ambient and medium temperature -5 to 60 ° C (not frozen)
Test pressure 1.5 MPa
Max. Operating pressure 1.0 MPa
Nominal filtration capacity [AF] 5 μm
Nominal filtration capacity [AFM] 0.3 μm
Nominal filtration capacity [AFD] 0.01 μm
Oil mist concentration at the outlet [AFM] max. 1.0 mg / m³ (ANR) *
Oil mist concentration at the outlet [AFD] max. 0.1 mg / m³ (ANR) *
Tank Material (Standard) Polycarbonate
Container protection (standard) Polycarbonate
Condensate drain float controlled, automatic
NC closed unconfirmed
