Datasheets:

AC-B-B_EU.pdf

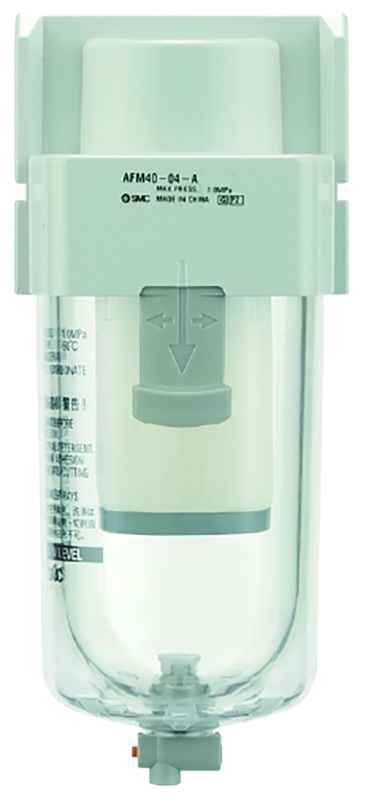

AFM20-F02-A SMC Pneumatic - Microfilter [AFM]

Connecting thread

Condensate drain

Qty:

Medium compressed air
Ambient and medium temperature -5 to 60 ° C (not frozen)
Test pressure 1.5 MPa

coming soon

Only %1 left

Article no

AFM20-F02-A

$ 49.64

Qty:

You need larger quantities? We would like to make you an individual offer. Request an offer now

Ask a question

More Information

More Information
Article no	AFM20-F02-A
Hersteller	SMC
Connecting thread	G 1/4
Flow	200
Condensate drain	manually

Details

Medium compressed air
Ambient and medium temperature -5 to 60 ° C (not frozen)
Test pressure 1.5 MPa
Max. Operating pressure 1.0 MPa
Nominal filtration capacity [AF] 5 μm
Nominal filtration capacity [AFM] 0.3 μm
Nominal filtration capacity [AFD] 0.01 μm
Oil mist concentration at the outlet [AFM] max. 1.0 mg / m³ (ANR) *
Oil mist concentration at the outlet [AFD] max. 0.1 mg / m³ (ANR) *
Tank Material (Standard) Polycarbonate
Container protection (standard) Polycarbonate
Condensate drain float controlled, automatic
NC closed unconfirmed

Product variation
