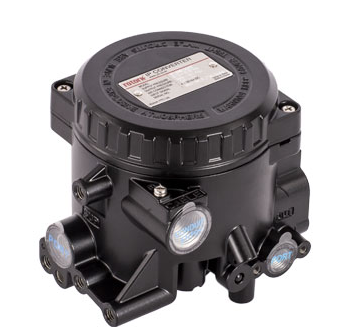

IP Converter Safety Type G1/2 - Rc1/4
IP Converter Safety Type G1/2 - Rc1/4
YT930 IP Converter accurately provides equipments with relevant air pressure, according to input signal of 4~20mA being delivered from the controller.
about 6-8 weeks
Only %1 left
More Information
| Article no |
YT930N11L00 |
| Hersteller |
YTC Rotork |
| Pressure (outlet) |
0,02 bis 0,1 MPa |
| Ambient temperature |
-40°C - +85°C |
| Connection size |
Rc 1/4" |
| operating temperatur |
-40 to 85 °C |
| option |
Keine |
| Gauge |
Kein |
Operating temperature range: -40 to 85 ° C
Output pressure: 0.2 ~ 1.0 bar
Supply pressure: 1.3 ~ 1.6 bar
Air consumption: Below 2 litres per minute/Below 0.08 cubic feet per minute
Flow capacity: 70 litres per minute/2.47 cubic feet per minute
Linearity: ± 0.5% F.S.
Hysteresis: ± 0.5% F.S.
Sensitivity: ± 0.2% F.S.
Repeatability: ± 0.3% F.S.
Conduit: G1/2
Material: Aluminium diecasting
Air connection: Rc1/4
Option: None
Gauge: None
