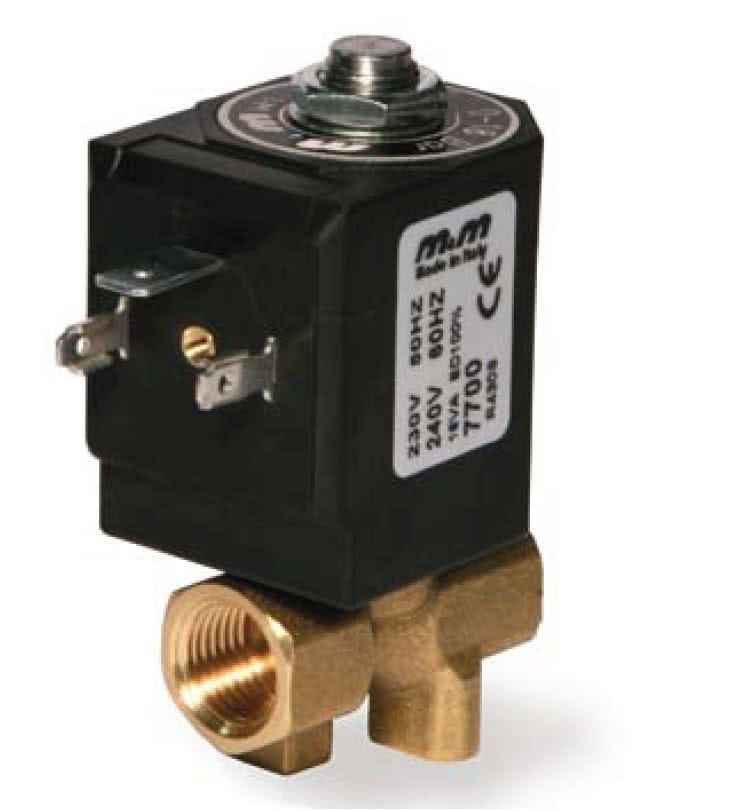

2-way solenoid valve, G 1/4 ", brass, normally closed, directly controlled
The image may differ from original
2-way solenoid valve, G 1/4 ", brass, normally closed, directly controlled
2-way solenoid valve, G 1/4 ", brass, normally closed, directly controlled

D249DVF 2-way solenoid valve, G 1/4 ", brass, normally closed, directly controlled

  • 12V 50/60Hz
  • 12V DC
  • 24V 50/60Hz
  • 24V DC
  • 110V 50Hz - 120V 60Hz
  • 230V 50Hz - 240V 60Hz
  • without coil

Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO


The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.

on stock
Only %1 left
Article no
D249DVF
$ 20.97

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no D249DVF
Hersteller M&M international Srl
Media Luft, Öl, Wasser
Kvs (l/m) 2.4
Material (anchor) Stainless steel
Media temperature -10°C - +130°C
Control type (solenoid valves) directly controlled
Ambient temperature -10°C - +50°C
Valve type 2-way normally closed
Connection size G 1/4"
Material Brass
Orifice size 2.2
Material (seal) FKM
Max. pressure voltage (AC) 18
Max. pressure voltage (DC) 16
