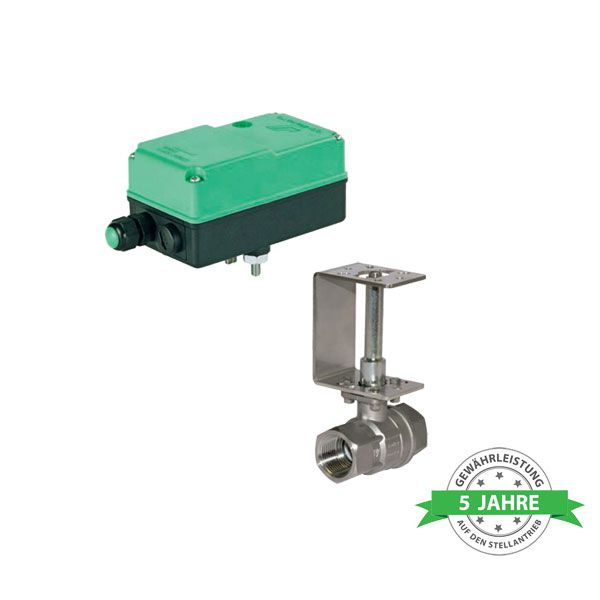

Comparato - Electric Ball Valve with Spacer - Stainless Steel (Aisi 316), Diamond 2000, 2-Way 1/2 "W / W, DN15, PN64, 230V
230V 50 / 60Hz All in One Actuator for (2P) - on / off & 3-point control (3P) control
2-way G 1/2 "female / female
5-year warranty on the actuator
2-way G 1/2 "female / female
5-year warranty on the actuator
about 3-4 weeks
Only %1 left
Article no
DC2A2BD1--DY222
| Article no | DC2A2BD1--DY222 |
|---|---|
| Hersteller | Comparato Nello Srl |
| operating pressure | 0 - 64 bar |
| Operating time / Torque (Nm) | 35sec/11Nm |
| Cable length | 80cm |
| Ball valve (connection) | Threaded Connector |
| Ball valve (type) | 2-way ball valve female/female |
| Material (seal) | PTFE |
| Motor (type) | Bi-directional, all in one |
| Orifice size (mm) | 15.0 |
| rotation | 90 ° |
| Voltage | 230V 50Hz - 240V 60Hz |
| Connector (protection class) | IP 65 |
| Power consumption | 4.8 VA |
| Ambient temperature | -10°C - +50°C |
| Material | Stainless steel (Aisi 316) |
| Connection size | G 1/2" |
