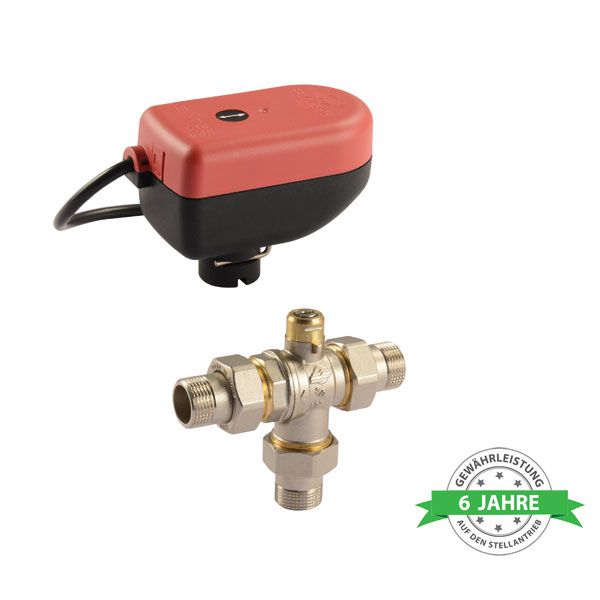

Comparato - Ball valve electric - Sintesi, 3-way 3/4 "M / M / M, DN20, PN16, 230V
230V 50 / 60Hz All in One Actuator for 2-point control (2P) - On / Off & 3-point control (3P) control
3-way G 3/4 "male / male / male
Optical position indicator
3-way G 3/4 "male / male / male
Optical position indicator
on stock
Only %1 left
Article no
SC3B3A--SY2221B
| Article no | SC3B3A--SY2221B |
|---|---|
| Hersteller | Comparato Nello Srl |
| operating pressure | 0 - 16 bar |
| Operating time / Torque (Nm) | 35sec/8Nm |
| Cable length | 80cm |
| Ball valve (connection) | Quick connection |
| Ball valve (type) | 3-way ball valve male/male/male |
| Material (seal) | PTFE |
| Motor (type) | Bi-directional, all in one |
| Orifice size (mm) | 20.0 |
| rotation | 90 ° |
| Voltage | 230V 50Hz - 240V 60Hz |
| Connector (protection class) | IP 54 |
| Position indicator | rotating arrow (indicates ball position) |
| Power consumption | 3.9 VA |
| Ambient temperature | +5°C - +50°C |
| Material | Nickel-plated brass |
| Connection size | G 3/4" |
