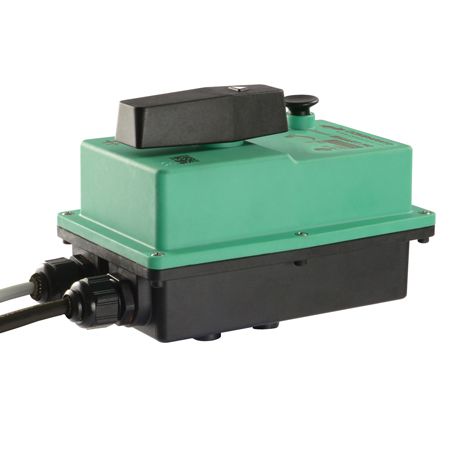

                Comparato - compact Smart Pro Modbus, 22 Nm, IP 67

        With Modbus and optional Wifi communication.
With 2 limit switches and position feedback.
3-year warranty on the actuator.
With emergency manual overwrite.
Optionally with Fail-Safe.



        about 3-4 weeks



    Only %1 left


        $ 503.91





            Regular Price
        $ 629.88




            Discount 20%








            More Information


                    | Article no | CSP24FM0A |

                    | Hersteller | Comparato Nello Srl |

                    | Ball valve (connection) | Threaded Connector, ISO 5211 |

                    | standard | ISO 5211 |

                    | rotation | 90 ° |

                    | Voltage | 12-24V AC/DC |

                    | Connector (protection class) | IP 67 |

                    | Torque (Nm) | 22 |

                    | Fail Safe | No |

                    | Communication Type | Modbus |









Programming of the actuator via APP (Wifi) or Modbus
Control
	- 2- & 3-positions control
- 0-10V, 2-10V, 0-20mA or 4-20mA position control
- PWM1, PWM2
Operating times
	- 15 sec., 30 sec., 60 sec. or 120 sec.
Functions
	- Command reverse
- Dead band correction
- Operating angle correction
- Heating resistance activation
Monitoring
