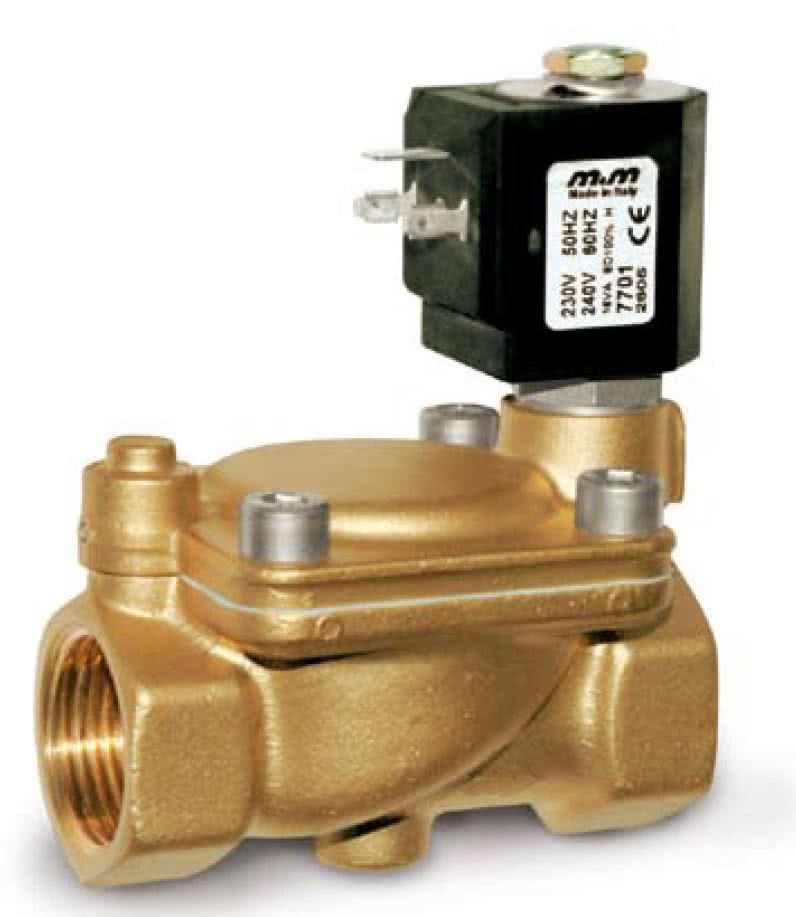

D622DTY 2-way solenoid valve, steam, G 1 ", brass, normally closed, servo-controlled
Servo-controlled solenoid valves 2/2 ways and - NC or NO
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
on stock
Article no
D622DTY
$ 202.94
- Buy 3 for $ 192.79 each and save 5%
- Buy 5 for $ 182.65 each and save 10%
- Buy 10 for $ 172.50 each and save 15%
| Article no | D622DTY |
|---|---|
| Pressure min (bar) | 1 |
| Hersteller | M&M international Srl |
| Media | Dampf, Wasser |
| Kvs (l/m) | 120 |
| Material (anchor) | Stainless steel |
| Material (seal) | PTFE |
| Media temperature | +60°C - +180°C |
| Control type (solenoid valves) | servo controlled |
| Ambient temperature | -10°C - +70°C |
| Valve type | 2-way normally closed |
| Connection size | G 1" |
| Material | Brass |
| Orifice size (mm) | 24.0 |
| Max. pressure voltage (AC) | 9 |
| Max. pressure voltage (DC) | 9 |
