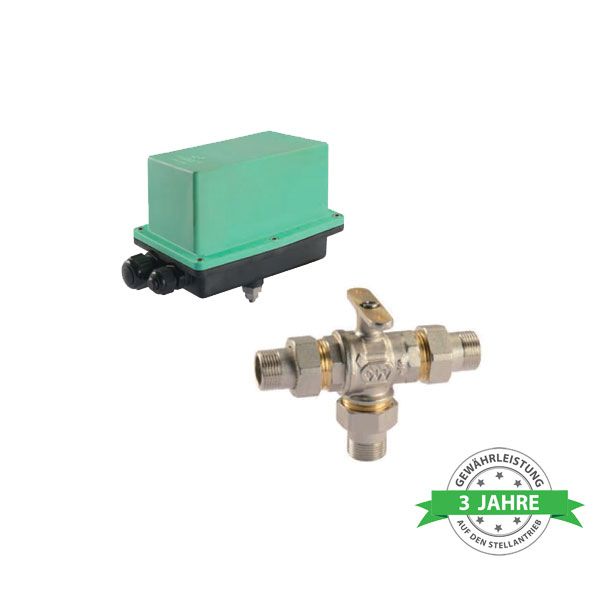

Comparato - Ball valve electric - Diamond DC, 3-way 1 "M / M / M, DN25, PN16, 24V DC / AC
24V DC / AC All in One Actuator for 2-point control (2P) - On / Off & 3-point control (3P) control
2-way G 1 "male / male
3 years warranty on the actuator
2-way G 1 "male / male
3 years warranty on the actuator
on stock
Article no
DC3C3A--DY242PC
Special Price
$ 307.37
Regular Price
$ 384.21
Discount 20%
| Article no | DC3C3A--DY242PC |
|---|---|
| Hersteller | Comparato Nello Srl |
| operating pressure | 0 - 16 bar |
| Operating time / Torque (Nm) | 12sec/11Nm |
| Cable length | 80cm |
| Ball valve (connection) | Threaded Connector |
| Ball valve (type) | 3-way ball valve male/male/male |
| Material (seal) | PTFE |
| Orifice size (mm) | 25.0 |
| rotation | 90 ° |
| Connector (protection class) | IP 67 |
| Power consumption | 1 VA |
| Ambient temperature | -10°C - +50°C |
| Connection size | G 1" |
| Material | Nickel-plated brass |
| Voltage | 24V AC/DC |
| Motor (type) | Bi-directional, all in one |
