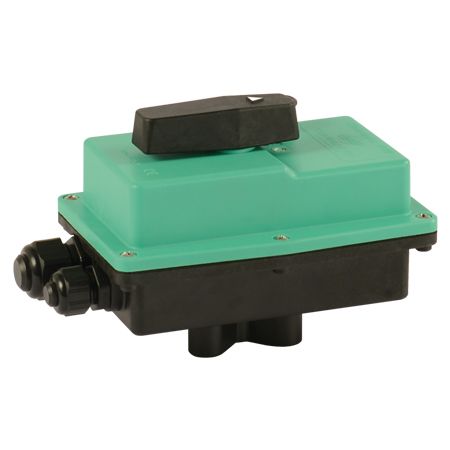

DY242F2A Comparato - Diamant PRO ISO 5211 All-in-One, 11 Nm, 35 sec., IP 67, 24V 50 / 60Hz
24V AC All in One Actuator for 2-point control (2P) - On / Off & 3-point control (3P) control
3 years warranty on the actuator
with 2 additional limit switch and manual override
about 3-4 weeks
Article no
DY242F2A
Special Price
$ 206.18
Regular Price
$ 257.73
Discount 20%
| Article no | DY242F2A |
|---|---|
| Hersteller | Comparato Nello Srl |
| Betriebszeit / Drehmoment (Nm) | 35sec/11Nm |
| Cable length | 80cm |
| Ball valve (connection) | Threaded Connector, ISO 5211 |
| Motor (type) | Bi-directional, all in one |
| standard | ISO 5211 |
| rotation | 90 ° |
| Coil (voltage) | 24V 50/60Hz |
| Connector (protection class) | IP 67 |
| Power consumption | 5.2 VA |
| Ambient temperature | -10°C - +50°C |
| Material | Polyamides/50% glass fiber - steam tested |
| Drilling pattern | F03/F05 |
| Torque (Nm) | 11 |
