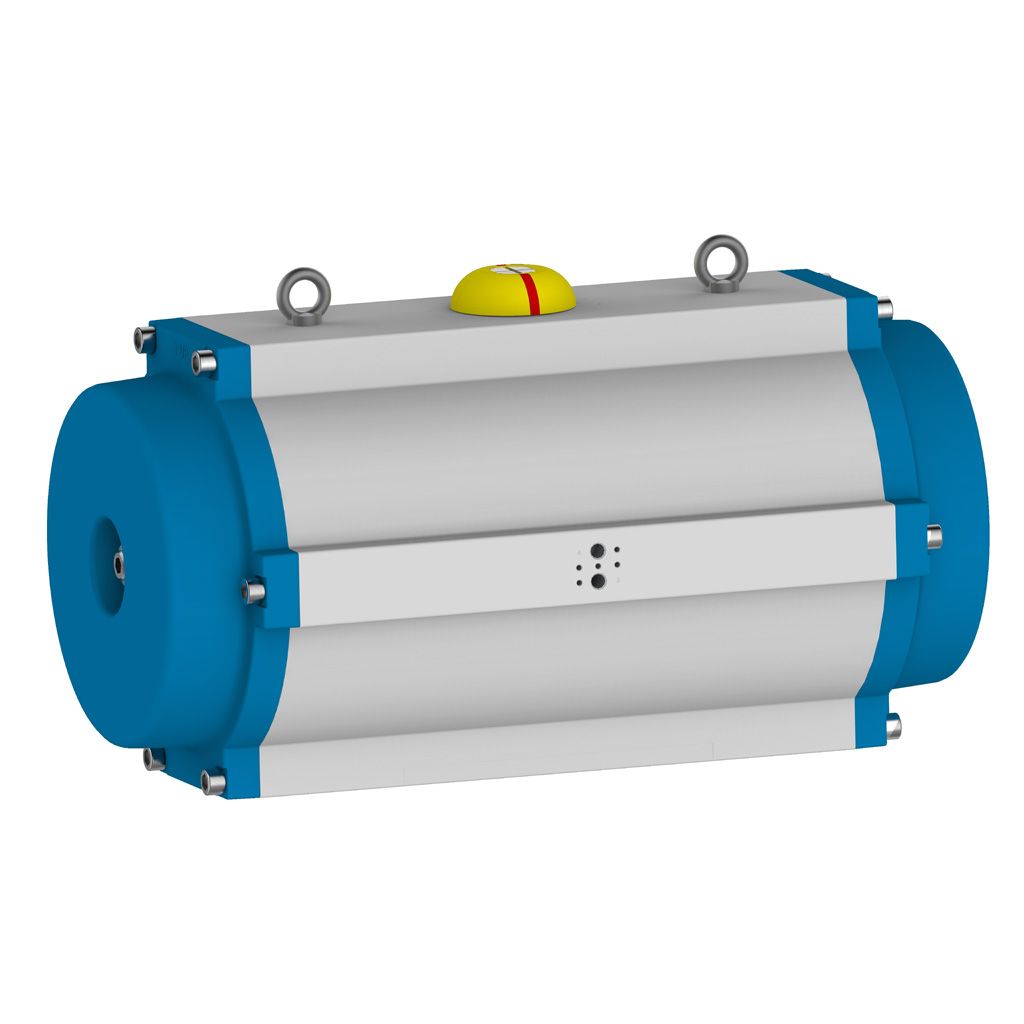

300 GT pneumatic actuator - double action, drilling pattern F16, one-sided end position adjustment, pinion NP46, CW-A
The image may differ from original

GTXB.300x90.DA.NP46A.F16.000 300 GT pneumatic actuator - double action, drilling pattern F16, one-sided end position adjustment, pinion NP46, CW-A

Series: 300
Angle of rotation: 90°
Pinion size: Octagonal 46mm (NP46)
End position adjustment: one-sided end position adjustment
Function: double action
Installation variant: CW direction of rotation parallel to the pipeline, clockwise closing/crosswise, counterclockwise closing
Drilling pattern: F16
Temperature: -50 to 70° C
about 1-2 weeks
Only %1 left
Article no
GTXB.300x90.DA.NP46A.F16.000
$ 4,250.80

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no GTXB.300x90.DA.NP46A.F16.000
Hersteller Rotork (GT Attuatori)
Series GT-300
Angle of rotation 90 °
Function Double acting
Shaft protrusion 30mm
Drilling pattern F16
Zufuhr Gefilterte Luft ISO 8573-1-5662
Air supply VDI/VDE 3845, NAMUR
Equipment VDI/VDE 3845, NAMUR
Fitting interface ISO 5211
Valve shaft interface ISO 5211
Stroke adjustment -5° to 5° from the 90° position
Housing material Anodized aluminum AW 6063
Material pinion Carbon steel EN 11SMnPb3 chemically nickel-plated
Piston material Die-cast aluminum UNI EN1706
Cover material Die-cast aluminum UNI EN1706, EN AC 46100, epoxy paint
Material spring cartridge Carbon steel, epoxy paint
Assembly variant Direction of rotation CW parallel to the pipeline, clockwise closing / across, counterclockwise closing
Ambient temperature -50 to 70°C
End position adjustment one-sided end position adjustment
Pinion size Octagonal 46mm (NP46)
