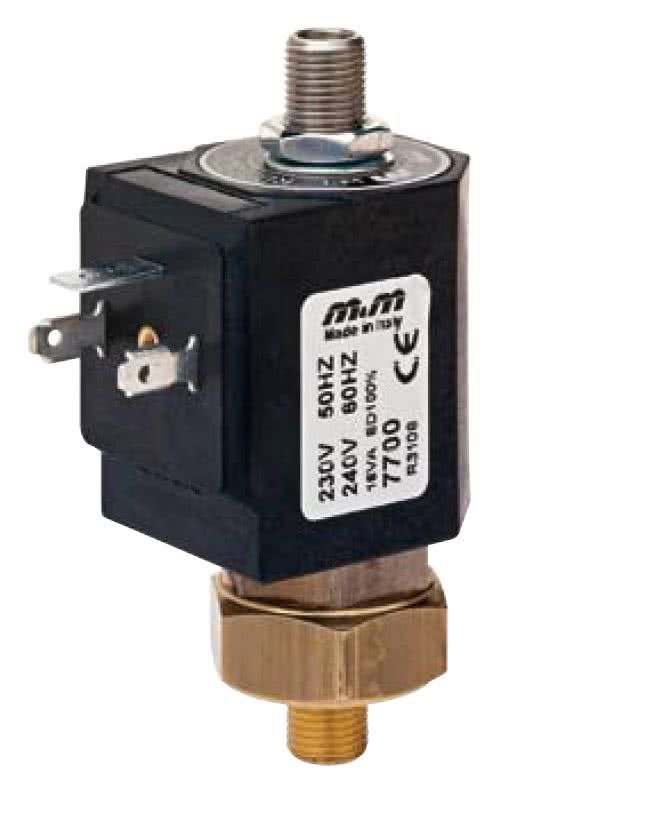

Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO
The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.
Article no | RD213CVG |
---|---|
Hersteller | M&M international Srl |
Media | Luft, Öl, Wasser |
Nominal size | 2.5 |
Media temperature | -10°C - +130°C |
Material (anchor) | Stainless steel |
Material (seal) | FKM A80 geeignet für Nahrungsmittel |
Connection size | G 1/8 " |
Kvs (l/m) | 2.4 |
Material | Brass |
Control type (solenoid valves) | directly controlled |
Valve type | 2-way normally open |
Ambient temperature | -10°C - +50°C |
Max. pressure AC voltage | 16 |
Max. Druck Gleichspannung (DC) | 16 |
