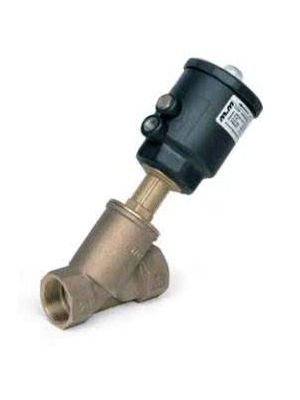

Gunmetal Angle Seat Valves

Gunmetal angle seat valves are suitable for controlling and shutting off media in compatible piping systems. Our range includes 2-way versions that are normally closed, normally open, double-acting or bidirectional, depending on the model. Different connection sizes from G 1/2" to G 2", along with various pressure ratings and ambient temperature ranges, help you select a valve to suit your system requirements.

Set Descending Direction

6 Items

per page
Set Descending Direction

6 Items

per page

Gunmetal Angle Seat Valves for Industrial Applications

Angle seat valves are used to control and shut off media in piping systems. Their design makes them suitable for various applications where reliable opening and closing of the flow is required. Our gunmetal angle seat valves are available in different 2-way versions. The appropriate option depends on the control function and operating conditions of the system.

Different Switching Functions

Depending on the version, different valve functions are available:

  • 2-way valves, normally closed
  • 2-way valves, normally open
  • 2-way valves, double-acting
  • 2-way valves, normally closed and bidirectional
  • 2-way valves, normally open and bidirectional

The switching function determines how the valve behaves at rest and when actuated. For bidirectional versions, the intended flow direction and pressure conditions must also be considered in accordance with the product specifications.

Connection Sizes and Nominal Sizes

Our range includes various threaded connections from G 1/2" to G 2", including G 3/4", G 1", G 1 1/4" and G 1 1/2". The listed nominal sizes range from 15 to 50. Match the connection size and nominal size to the existing pipeline and the required flow rate.

Pressure Ratings and Ambient Temperatures

The available models differ in their maximum permissible pressure ratings. Depending on the version, different pressure specifications are listed, including values up to 20 bar. The technical data for the specific valve and the applicable operating conditions are always decisive.

For ambient temperature, versions with ranges from -10 °C to +60 °C and from -10 °C to +80 °C are specified. Check whether the permitted temperature conditions are suitable for the intended installation environment.

Selecting the Right Angle Seat Valve

When selecting a valve, consider the required switching function, connection size, nominal size, maximum operating pressure and ambient temperature. Media compatibility and the specific installation conditions must also match the product data. Compare the technical specifications of the individual models to find a suitable gunmetal angle seat valve for your application.
