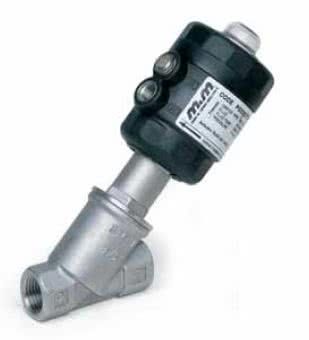

2-way angle seat valve, G 1 ", stainless steel, normally closed
The image may differ from original
2-way angle seat valve, G 1 ", stainless steel, normally closed
2-way angle seat valve, G 1 ", stainless steel, normally closed

PG207LTY00 2-way angle seat valve, G 1 ", stainless steel, normally closed

2-way angle seat valve - NC


In the case of the inclined seat valve in NC version, the flow rate is above the seat. The control medium opens, the spring closes. The material of the main seal made of PTFE type TFM 1600 impresses with its lower porosity and permeability. It offers better homogeneity and elasticity, as well as better resistance to deformation under pressure. Likewise, a better chemical resistance is achieved.

on stock
Only %1 left
Article no
PG207LTY00
$ 288.03 Regular Price $ 384.04 Discount 25%

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no PG207LTY00
Hersteller M&M international Srl
Media aggressive Medien, Dampf, Luft, Öl, Wasser
Pressure Max (bar) 20
Flow direction 1 -> 2 (flow over seat)
Kvs (l/m) 260
Material (fitting) AISI 316L
Material (seal) PTFE type TFM 1600
Material (control head) Polyamide PA6 (reinforced with fiberglass 30%)
Media temperature -10°C - +180°C
Orifice size (mm) 25.0
Position indicator Standard
Control pressure Max (barg) 8.0
Control pressure Min (barg) 2.0
Control head (diameter) 90
Control media Water | air | inert gases
Ambient temperature -10°C - +60°C
Valve type 2-way normally closed
Connection size G 1"
Material AISI 316L
