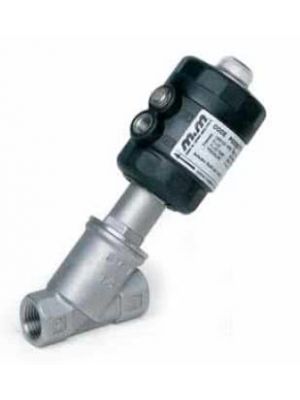

Stainless Steel Angle Seat Valves
Stainless steel angle seat valves are suitable for reliable media control and shut-off in industrial applications. Depending on the design, 2-way valves are available in double-acting, normally closed or normally open versions. Bidirectional versions are also available. Choose suitable connection sizes from G 1/2" to G 2", nominal sizes from DN 15 to DN 50, and the required pressure rating according to your operating conditions.
Stainless steel angle seat valves for industrial applications
Stainless steel angle seat valves are used to control and shut off liquids and gases in a wide range of industrial systems. Their design allows compact integration into piping systems. When selecting a valve, it is particularly important to consider the medium, operating conditions, connection size and required pressure rating.
Different switching functions
Our range includes 2-way angle seat valves with different switching functions. Depending on the design, double-acting, normally closed and normally open versions are available. Bidirectional versions are also available for applications where the medium must be able to flow in both directions. The suitable version depends on the system control and operating conditions.
Connection sizes and nominal sizes
Stainless steel angle seat valves are available with threaded connections from G 1/2" to G 2" for integration into different piping systems. The range includes nominal sizes from DN 15 to DN 50. The appropriate combination of connection size and nominal size should be selected based on the required flow rate and the existing installation.
Selecting the appropriate pressure rating
The maximum permissible operating pressure varies depending on the model. The range includes versions with pressure ratings such as 11, 12, 15, 16 and up to 20 bar, as well as variants with different pressure values for specific operating conditions. Please refer to the technical data for the individual valve, as the permissible pressure depends on the specific design and operating conditions.
Find the right stainless steel angle seat valve
When selecting a valve, consider the switching function, connection size, medium, required flow rate and pressure conditions. Compare the technical specifications of the individual models to find a stainless steel angle seat valve that suits your application.
