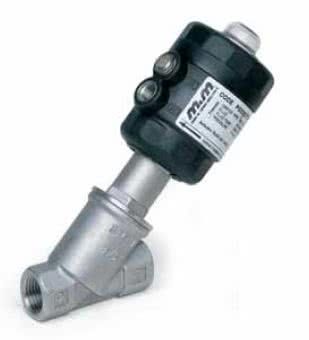

2-way angle seat valve, G 1/2 ", stainless steel, normally open
2-way angle seat valve - NO
With the inclined seat valve in the NO version, the flow is located under the seat. The control medium closes and the valve remains open due to the spring. The material of the main seal made of PTFE type TFM 1600 impresses with its lower porosity and permeability. It offers better homogeneity and elasticity, as well as better resistance to deformation under pressure. Likewise, a better chemical resistance is achieved.
about 2-3 weeks
Article no
RPG205CTW00
$ 273.94
- Buy 3 for $ 260.24 each and save 5%
- Buy 5 for $ 246.54 each and save 10%
- Buy 10 for $ 232.85 each and save 15%
| Article no | RPG205CTW00 |
|---|---|
| Media | aggressive Medien, Dampf, Luft, Öl, Wasser |
| Hersteller | M&M international Srl |
| Pressure Max (bar) | 16 |
| Flow direction | 2 -> 1 |
| Kvs (l/m) | 75 |
| Material (fitting) | AISI 316L |
| Material (control head) | Polyamide PA6 (reinforced with fiberglass 30%) |
| Media temperature | -10°C - +180°C |
| Position indicator | Standard |
| Control head (diameter) | 45 |
| Control media | Water | air | inert gases |
| Ambient temperature | -10°C - +60°C |
| Connection size | G 1/2" |
| Material | AISI 316L |
| Orifice size (mm) | 15.0 |
| Material (seal) | PTFE type TFM 1600 |
| Valve type | 2-way normally open |
