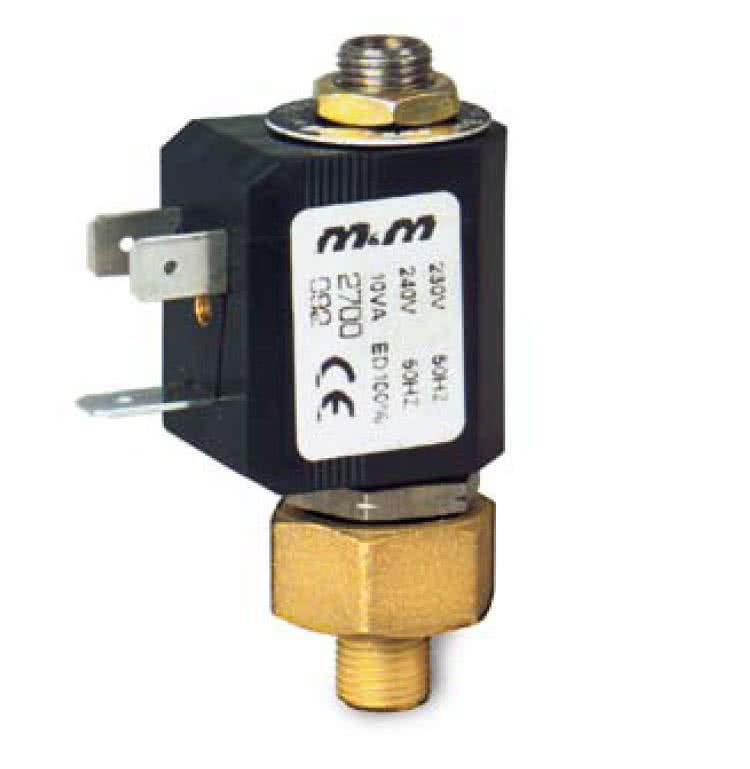

RB214CVD 2-way solenoid valve, G 1/8 ", brass, normally open, direct operated

  • 12V 50/60Hz
  • 12V DC
  • 24V 50/60Hz
  • 24V DC
  • 110V 50Hz - 120V 60Hz
  • 230V 50Hz - 240V 60Hz
  • without coil



Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO


The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.

on stock
Article no
RB214CVD
€19.91
  • Buy 3 for €18.91 each and save 5%
  • Buy 5 for €17.92 each and save 10%
  • Buy 10 for €16.92 each and save 15%

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no RB214CVD
Hersteller M&M international Srl
Media Luft, Öl, Wasser
Nominal size 1.7
Media temperature -10°C - +130°C
Material (anchor) Stainless steel
Material (seal) FKM A80 geeignet für Nahrungsmittel
Connection size G 1/8 "
Kvs (l/m) 1.2
Material Brass
Control type (solenoid valves) directly controlled
Valve type 2-way normally open
Ambient temperature -10°C - +50°C
Max. pressure AC voltage 14
Max. Druck Gleichspannung (DC) 14

Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO

The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.
